In the fast-paced world of high-density optical networks—think data centers, ISPs, and enterprise backbones—every millisecond and decibel counts. Enter the unsung hero: the fiber pigtail. These short, connectorized fiber cables might seem modest, but they play a pivotal role in enhancing signal integrity, simplifying maintenance, and ensuring robust uptime in mission-critical environments.
The Lowdown on Fiber Pigtails
A fiber pigtail is a short optical fiber with a factory-installed connector on one end and an unterminated end on the other. This design allows for seamless fusion splicing with other fibers, creating a reliable and low-loss connection point. Available in various connector types like LC, SC, and ST, fiber pigtails are versatile components in optical networks.
Minimizing Signal Loss: The Silent Efficiency
Signal loss, or attenuation, is a critical concern in optical networks. Factors like fiber bends, connector imperfections, and splicing errors can degrade signal quality. Fiber pigtails address these issues head-on:
- Factory-Polished Connectors: The pre-terminated connectors on fiber pigtails are polished and tested in controlled environments, ensuring optimal performance and minimal insertion loss.
- Precision Fusion Splicing: The unterminated end of the pigtail is designed for fusion splicing, a process that creates a seamless joint with minimal reflection and attenuation.
- Bend-Insensitive Fibers: Many pigtails use bend-insensitive fibers, which maintain signal integrity even when routed through tight spaces—a common scenario in high-density setups.
By integrating fiber pigtails, networks can achieve lower insertion losses and higher return losses, translating to clearer signals and more efficient data transmission.
Streamlining Maintenance: Plug-and-Play Simplicity
Maintenance in high-density optical networks can be daunting. Fiber pigtails simplify this with:
- Modular Design: Their standardized connectors allow for easy integration and replacement without overhauling the entire system.
- Color-Coded Identification: Pigtails often come with color-coded jackets, facilitating quick identification during troubleshooting.
- Reduced Downtime: In the event of a fault, replacing a pigtail is faster and less disruptive than re-terminating or replacing entire cable runs.
This modularity not only accelerates maintenance tasks but also reduces the risk of errors during installation and servicing.
Enhancing Uptime in Mission-Critical Applications
In environments where downtime is not an option—like financial institutions, healthcare facilities, and data centers—fiber pigtails contribute to network resilience:
- Reliable Connections: The high-quality connectors and splicing reduce the likelihood of connection failures.
- Scalability: As networks grow, pigtails allow for straightforward expansions without significant infrastructure changes.
- Environmental Durability: Many pigtails are designed to withstand environmental stresses, ensuring consistent performance over time.
By providing stable and reliable connections, fiber pigtails are integral to maintaining continuous operations in critical systems.
Real-World Applications: Where Pigtails Shine
Fiber pigtails are versatile and find applications across various sectors:
- Data Centers: For connecting servers, switches, and storage systems with minimal signal loss.
- Telecommunications: In central offices and remote terminals, facilitating efficient signal routing.
- FTTx Deployments: Enabling last-mile connections in fiber-to-the-home/business setups.
- Industrial Networks: Withstanding harsh conditions while maintaining network integrity.
Their adaptability makes them a staple in both existing infrastructures and new installations.
Choosing the Right Pigtail: Factors to Consider
Picking the perfect fiber pigtail isn’t just a game of connector shapes and cable colors. There’s a lot more going on beneath the jacket—literally. If you’re running or upgrading a high-density optical network, taking a few extra minutes to choose the right pigtail can save you from signal nightmares, costly rework, and maintenance meltdowns. Here’s what you need to keep an eye on:
1. Connector Type – LC, SC, or Something More Niche?
This one’s the most obvious, but it’s also the most critical. The connector on the pigtail needs to match the port you’re plugging it into—simple, right? Not always.

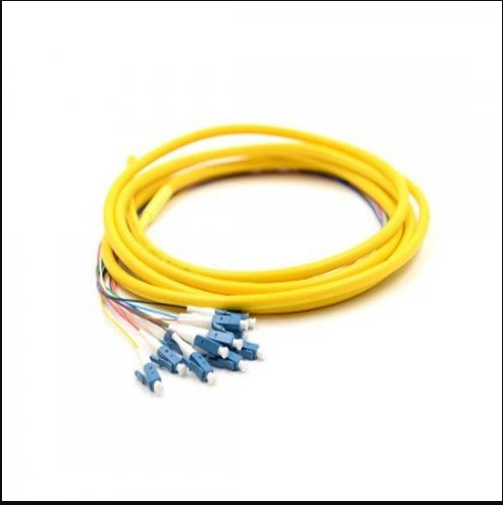

- LC pigtails are the most popular for high-density networks thanks to their small footprint and secure latching mechanism.
- SC pigtails still hold their ground in legacy systems and are great for simple, push-pull connections.
- Need something a bit more specialized? ST, FC, and MU connectors also exist, each offering unique benefits depending on your setup.
Pro tip: If you’re dealing with space constraints (hello, data centers), LC or MTP 12 cable configurations might be your best friends.
2. Single-mode vs. Multimode – Speed and Distance Matter
Here’s where performance specs come into play. You’ve got two main types of optical fiber:
- Single-mode (OS2) pigtails are built for long-distance communication and are standard for telecom, enterprise backbones, and ISP-level networks. These typically use a yellow jacket and have a smaller core (around 9 microns).
- Multimode (OM1, OM2, OM3, OM4) pigtails are better suited for shorter distances and higher-speed, high-throughput environments like within a data center. Multimode cores are larger (50 or 62.5 microns), which allows for multiple light paths but increases modal dispersion.

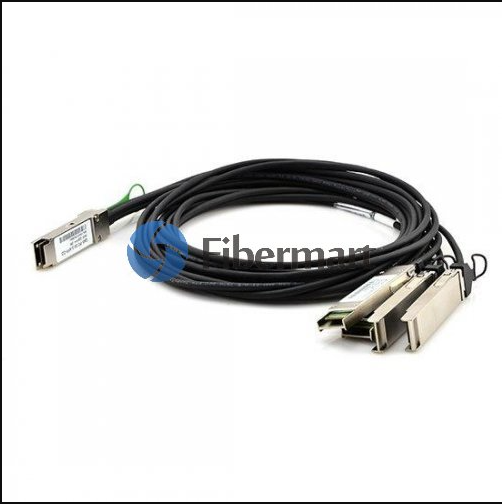

If your setup involves Qsfp cable, QSFP28 cable, or QSFP56 cable connections inside a rack or between racks, multimode could work. For long-haul applications or outside plant scenarios, stick with single-mode.
3. Cable Jacket Material – Not Just a Pretty Coat
The outer layer of a fiber pigtail might seem like it’s just for looks, but it’s doing a lot of heavy lifting—literally protecting your entire transmission.
- PVC is fine for most standard indoor applications, offering flexibility and cost-effectiveness.
- LSZH (Low Smoke Zero Halogen) jackets are crucial where fire safety is a priority (think offices, hospitals, and public spaces).
- Armored pigtails add a steel or Kevlar layer to protect against rodents, crushing, or abrasion in industrial environments.
Need your network to run across a factory floor or through outdoor conduits? Don’t skimp on the jacket.
4. Fiber Count – How Many Cores Do You Really Need?
This gets overlooked all the time. You’ve got options ranging from single-fiber pigtails to 12 fiber pigtail bundles.
- If you’re working with MPO trunk cable or mtp cable configurations, a MTP 12 cable or MPO 12 cable pigtail is a solid match, offering clean, high-bandwidth multi-fiber connections.
- For simpler installs or upgrades, a set of color-coded single-fiber pigtails might be better.
Bottom line? Match the fiber count to your patch panel, splitter, or enclosure layout to reduce future cabling chaos.
5. Insertion & Return Loss – The Performance Checkpoints
Okay, this gets a little technical—but it’s worth it. The quality of your splice or connection directly affects insertion loss (how much signal is lost) and return loss (how much signal is reflected back).
- Look for pigtails with insertion loss <0.3 dB and return loss >50 dB for best-in-class performance.
- This is especially vital in high-speed setups using optical switch, optical amplifier, or EDFA components where even a tiny loss can wreck your signal-to-noise ratio.
These values are often listed in product specs. If they’re not, consider it a red flag.
6. Polishing Type – UPC or APC? That’s the Question
Fiber connectors are polished to reduce light reflection. Two main types exist:
- UPC (Ultra Physical Contact) connectors offer low insertion loss and are ideal for data transmission where return loss isn’t as big a concern.

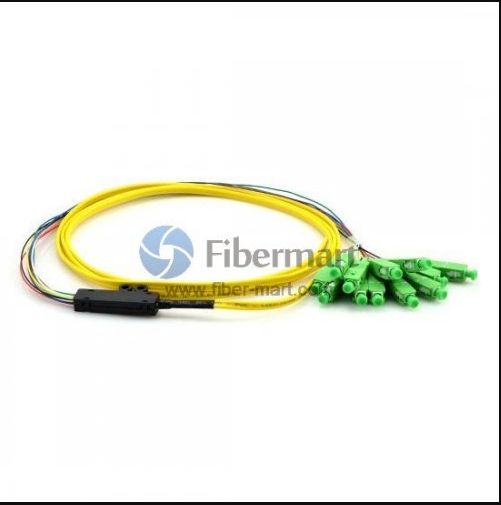

- APC (Angled Physical Contact) connectors have an 8° angle that minimizes back reflection—perfect for FTTx, CATV, and high-precision measurement setups.
You’ll usually spot APC connectors by their green housing. Just make sure you don’t mismatch APC and UPC—it can lead to disastrous signal degradation.
7. Ease of Installation – Don’t Fight Your Hardware
Last but not least: installation. Some pigtails are easier to work with than others.
- Pre-terminated, pre-polished, and tested fiber patch cables or fiber jumper assemblies make installation faster and cleaner.
- Using a polarization maintaining cable or Polarization Maintaining Patch Cable? These require careful alignment to preserve the light wave’s orientation, which is critical in applications like quantum optics or coherent transmission systems.
If you’re not experienced in handling these more complex cables, lean toward plug-and-play options or get help from someone who knows their way around a fusion splicer.
